Garant Optima indoor SMD P1.25 small pitch led display
Garant Optima is a specialized manufacturer of Small Pitch LED Display from China, productcategories includes P1.25 die casting aluminum Led Display,P1.5625 die casting aluminum Led Display,P1.667 die casting aluminum Led Display&P1.923 die casting aluminum Led Display.As a reliable factory,supplier,wholesale high quality products of Small Pitch Die Casting Display
Screens R & D, we have the perfect aftersales service and technical
support. Look forward to your cooperation!
Garant Optima's P1.25 die casting aluminum Led Display has the advantages of high refresh, high grayscale, high
utilization rate, no afterimage, low power consumption, low EMI and
non-reflective for indoor applications.Display contrast up to 5000:
1.It is lightweight, ultra-thin, high-precision,quiet, takes up
little space and has efficiently dissipates heat.This series of
products has a wider color gamut space and faster response speed
than ordinary displays, which can achieve seamless splicing and
modular maintenance of any size.The entire picture played by it is
uniform in color and vivid in high definition.It does not have the
usual abnormal display of sweat spots, bright lines, etc. The
screen switching is soft and does not flicker.The picture quality
is very delicate and can almost reach the playback effect of a TV.
Features:
● Ultra-small pitch, high pixel density HD LED display, suitable
for indoor ultra-high-definition close-up viewing display;
● Wide color gamut, uniform color, high contrast, high gray, high
brush, radio and television-level super stability;
● Advanced research and development technology and reliable
components ensure its excellent high grayscale and high refresh
rate;
● 160 ultra-wide viewing angle, enabling viewers to obtain
high-quality display effects at various angles;
● Can be spliced in any direction, at any time, and in any shape,
showing perfect seamless visual effect;
● Die-cast aluminum frame design, ultra-light, ultra-thin screen,
space-saving, cost-saving and stylish and beautiful;
● Die-cast aluminum housing improves heat dissipation performance,
extends service life, and reduces maintenance costs.
Our Advantage:
Our products VS others
Gray Scare
Refresh rate
Brightness
Specification:
| LED Display Model | GO-M125 | GO-M156 | GO-M166 | GO-M192 |
| Module Specification | Pixel Pitch | 1.25 mm | 1.5625 mm | 1.66 mm | 1.923 mm |
| Pixel Density | 640000 dot//㎡ | 409600 dot//㎡ | 360000dot//㎡ | 270421 dot//㎡ |
| LED Shape | SMD 3in1 | SMD 3in1 | SMD 3in1 | SMD 3in1 |
| LED Configuration | SMD1010(1R1G1B) | SMD1010(1R1G1B) | SMD1010(1R1G1B) | SMD1515(1R1G1B) |
| Module Size | 200x150 mm | 200x150 mm | 200x150 mm | 200x150 mm |
| Module Resolution | 160*120 dot | 128*96 dot | 120*90dot | 104*78dot |
| Cabinet Specification | Cabinet Size | 400x300 mm | 400x300 mm | 400x300 mm | 400x300 mm |
| Cabinet Resoltuion | 320x240 dot | 256x192 dot | 240x180 dot | 208x156 dot |
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Cabinet Weight | 4.2Kg | 4.2Kg | 4.2Kg | 4.2Kg |
| Screen Specification | Brightness | ≥800 cd//㎡ | ≥800 cd//㎡ | ≥800 cd//㎡ | ≥800 cd//㎡ |
| Viewing angle | H/V 140/140 | H/V 140/140 | H/V 140/140 | H/V 140/140 |
| Viewing Distance | >>1.5 Meters | >>2Meters | >>2 Meters | >>2.5 Meters |
| Display Color | 16.7M | 16.7M | 16.7M | 16.7M |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Grey Scale | 14Bit | 14Bit | 14Bit | 14Bit |
| Scanning Mode | 1/30S | 1/32S | 1/30S | 1/26S |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Max power consumption | 600 W/㎡ | 600 W/㎡ | 600 W/㎡ | 600 W/㎡ |
| Ave power consumption | 280 W/㎡ | 280 W/㎡ | 280 W/㎡ | 280 W/㎡ |
| Working Voltage | AC 100-240V, 50-60HZ | AC 100-240V, 50-60HZ | AC 100-240V, 50-60HZ | AC 100-240V, 50-60HZ |
| Control Mode | Synchronization controlled by PC | Synchronization controlled by PC | Synchronization controlled by PC | Synchronization controlled by PC |
| Data Transmission | CAT5/ Optic Fiber | CAT5/ Optic Fiber | CAT5/ Optic Fiber | CAT5/ Optic Fiber |
| Controlling system | linsn, Nova, Mooncell | linsn, Nova, Mooncell | linsn, Nova, Mooncell | linsn, Nova, Mooncell |
| Video signal input | Composite,DVI,VGA, HDMI,HDSDI | Composite,DVI,VGA, HDMI,HDSDI | Composite,DVI,VGA,HDMI,HDSDI | Composite,DVI,VGA,HDMI,HDSDI |
| Working Temperature | -20~65 ℃ | -20~65 ℃ | -20~65 ℃ | -20~65 ℃ |
| Working Humidity | 10-90% RH | 10-90% RH | 10-90% RH | 10-90% RH |
| Brightness Adjustment | 0~100 levels | 0~100 levels | 0~100 levels | 0~100 levels |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Pixel failing Rate | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
| Working Environment | Indoor | Indoor | Indoor | Indoor |

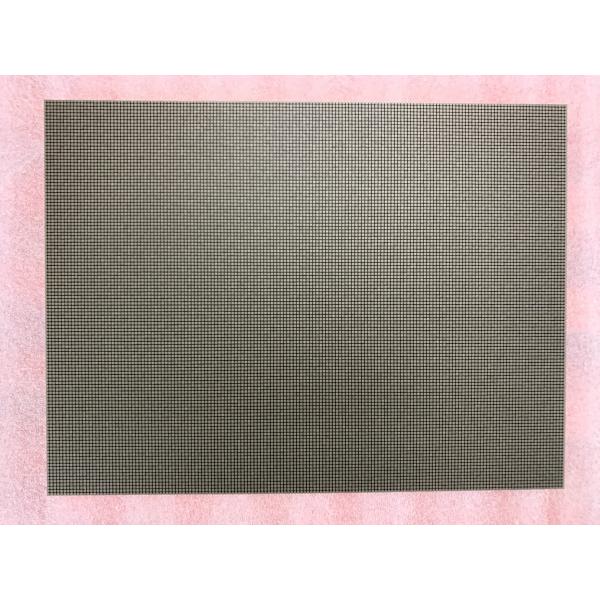

LED Display Module
Details Preparation:
200x150mm 160x120 dot SMD1010 LED Display Module
LED Display Cabinet
400x300mm die casting aluminum cabinet
Application:
Garant Optima-China P1.25 small pitch LED display video wall supplier
The P1.25 small-pitch LED display video wall is also known as P1.25 fine pitch led display or P1.25 high-definition LED display or P1.25 HD indoor LED video wall. It represents the latest and top technology of the LED display
industry. The video wall made of 400mmx 300mm die-casting cabinet
is easily get 16: 9 or 4: 3 display ratio, which is widely used in
bars, KTV, entertainment venues, concerts, fashion shows,
architectural curtain walls, high-end conference rooms, TV studios,
government buildings, etc.
indoor P1.25 die casting aluminum Led Display in Italy
indoor P1.25 die casting aluminum Led Display in Shenzhen,China
indoor P1.25 die casting aluminum Led Display in NanJing,China
